Call for pricing.
Rowe Solution Water Poly Skids
Rowe CAFS Solution Water Poly Skid Unit

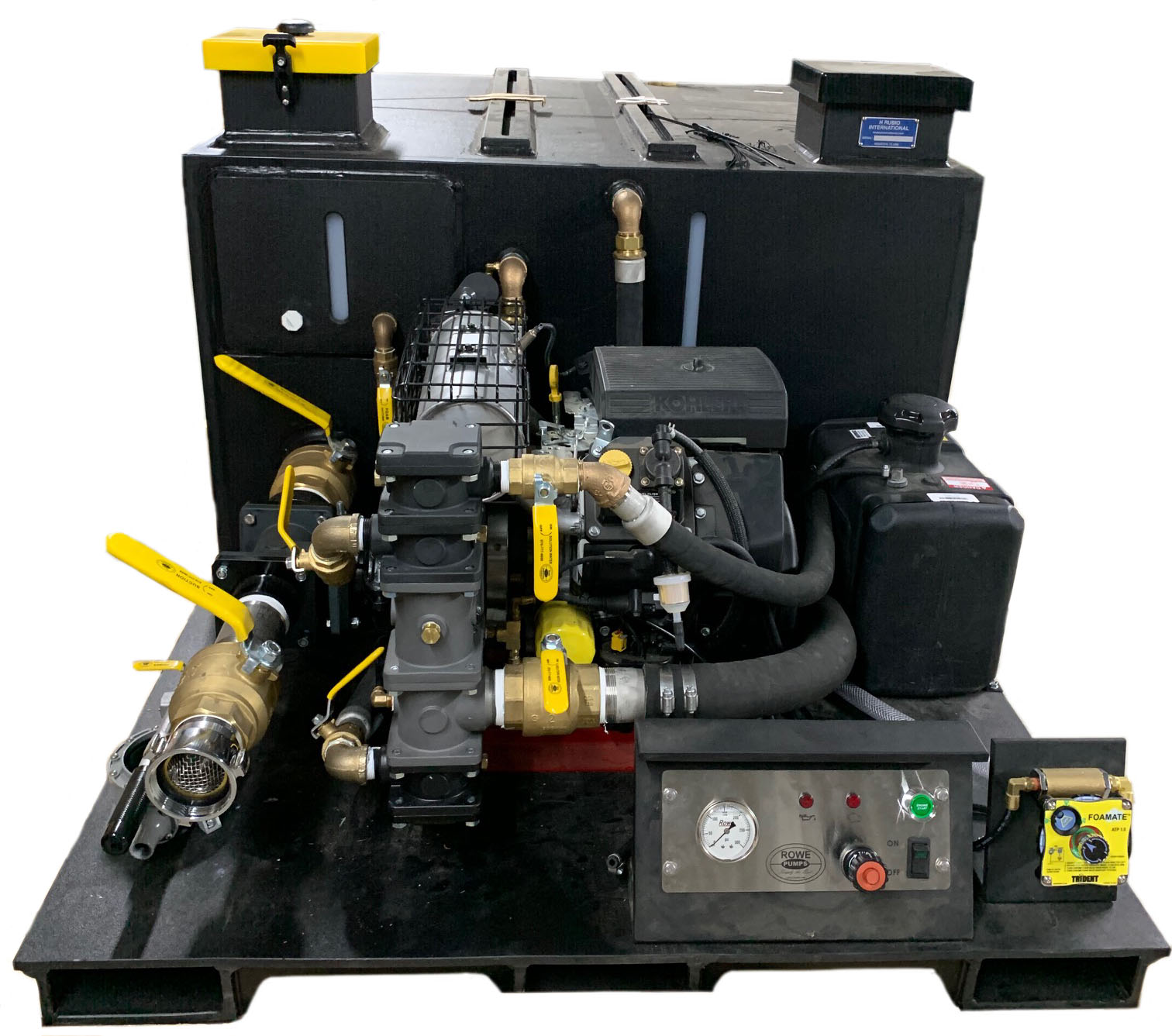

“deluxe control panel, aluminum valve upgrade & Foammate 1.0 system shown in photo”
Engine, proportioner, and hose reel all carry their manufactures warranty.
Poly tanks – Lifetime warranty
Rowe Pump – 7 years
All other components guaranteed against defects in materials or workmanship for one (1) year from date of purchase.
| Model | Rowe Solution Water Poly Skid Unit |
|---|---|
| Frame | 3/4" poly base standard |
| Pump | Rowe Model #RPM2-K19 ; Mechanical pump seal; Anodized pump housing; Bronze pump impeller; ¼" pump cooler line |
| Performance | 175 GPM @ 150 PSI; 200 GPM @ 100 PSI; 300 GPM @ 25 PSI |
| Engine | Kohler ECH630 19HP gasoline engine. Electronic fuel injection (EFI) |
| Control Panel | 2.5" 0-300 PSI pressure guage; Throttle, choke, and key ignition controls – standard Deluxe remote panel offered as option |
| Plumbing | Trident Wildland manifold system discharge manifold |
| Foam System | Trident Foam mate 1.0 around the pump system |
| Discharges | 2½" or 1½" gated discharge at rear (x1) – chrome adapters, caps, & chains; 3" tank to pump valve (x1); 1" gated discharge at hose reel (x1); 2½" gated suction (x1); Additional discharges can be added to the manifold |
| Primer | Guzzler diaphragm hand primer |
| Hose Reel | Hannay EF4038-17-18RT electric rewind hose reel; Dual chrome hose rollers; 100 ft. of 1-inch fire engine booster hose |
| Valves | Brass quarter-turn ball valves w/ stainless steel balls. Function labeled on handles. |
| Tank | Lifetime warranty on poly skid tank |
| Foam Cell | 10-gallon |
| Dimensions | 48" x 96" or 48" x 72"; unit has ¾" poly pump base |
| Fuel Capacity | 5-gallon carb-compliant fuel cell |
| Options | Call for pricing with upgrades -Customer spec hose reel -Add whipline(s) -upgrade to Akron brass ball valves -upgrade to Aluminum fire service valves -Deluxe control panel, push button start |
